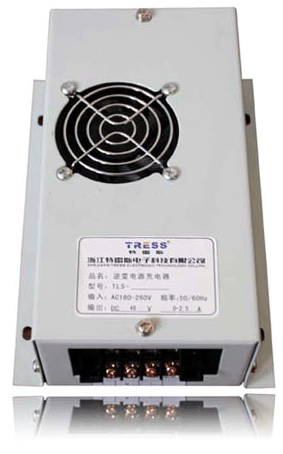

Exterior

TLS-C1.5 is applied to power inverter from 0.5kw to 1.5kw.

TLS-C1.5 charger has intelligent charging management:

Charger CPU is setted standard charging curve of all batteries from 7 Ahs-1000Ah capacity,

and according to different capacity of the battery, charge safely and efficient.

Technique of temperature compensation is adopted, it can control the charging current according to the variety of temperature,

keeping the activity of material in the inner part, ensuring the charging efficiency and prolonging the service life of battery.

The advanced three-stage charge mode, stable current and volage, automatically swith to charge,

maximize the activation of the battery charging time, in the state of full capacity,

CPU takes intermittent charging mode, thus extending battery life.

Model	TLS-C1.5
DC Output Voltage	12V/24V/48V
Output Current Range	0-3A
Adjustable Range	±10%
Output Corresponding Battery Capacity （C=(A)/(Ah)）	Charging current 0.1C Peak charging current 0.2C
Input Voltage Range & Frequency	185～260VAC continuos input；47～63Hz
Wave Voltage	≦500mv
Frequency	Input 220VAC Full load ≥90%
High Temperature Protection	≥85℃ automatically cutoff output
Static Leakage Discharging Current	0.25mA
Temperature Ratio	±0.03%/℃(0-50℃)
Cooling Method	Fan Cooling
Earthquake Resistance	10～500Hz.2G 10min,/1 cycle，60 minutes long
Isolation Withstand voltage	Input and Output, Input and Cover, Output and Cover 1500V（1min）
Isolation Resistance	Input and Output, Input and Cover, Output and Cover 500VDC/100MΩ
Working Temperature Humidity	－20℃～＋60℃, No dew 20%～95%RH
LED Status Indication	Separately indicate stable current, stable current, stable voltage, floating, fault

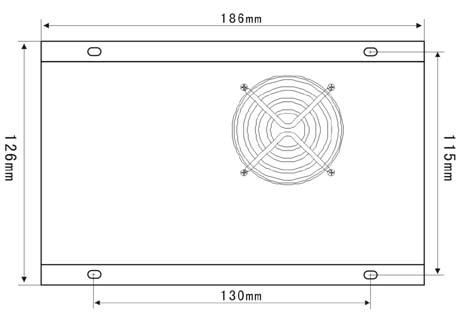

Dimension	126×190×63mm
Weight	700g
Standard	GB17945-2010
Remark: other specification can be made.

Note1：Charging voltage of every battery is 13.8V

Note2：Above battery is the 12V acid battery.
