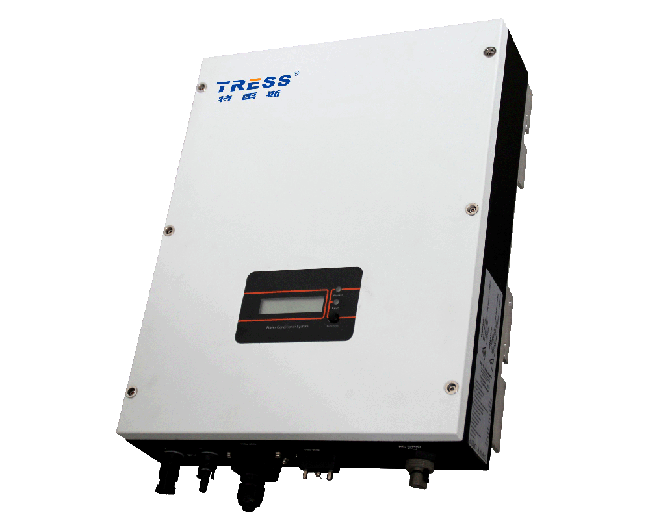

Appearance
Description
The grid connected inverter can be used with a connection to grid or power lines. This type supplies the loading appliances with electric power produced by photovoltaic systems.
The advantage of grid-type is not to worry any power waste, because by connecting inverter to grid, it can save any surplus electricity.
Feature
* Can be applied to various field, main for solar and wind system.
* Strong IP65(NEMA 4)protection, completed sealed cover suitable for harsh environment.
* Advanced MPPT tracking
* No isolation transformer H6 full-bridge structure, highest efficiency reach 97% (Europe 96.5%)
* Over voltage, short circuit, overload, overheat and islanding protection etc.
* Different national standards for choice through keypress.
* Multi-language LCD display, convenient for users to monitor main parameters from different countries.
* Max MPPT votlage range
* 5 years warranty period can be extended to 25 years
Parameters
1KW~3KW
Model |
TressSolar1KTS |
TressSolar1.5KTS |
TressSolar2KTS |
TressSolar3KTS | |
Max. DC input power(W) |
1100 |
1600 |
2300 |
3200 | |
Max. DC input voltage(V) |
500 |
500 |
500 |
500 | |
Max. DC input current (A) |
8.8 |
9.7 |
11 |
13 | |
Number of independent MPPT inputs/strings per MPPT input |
1/1 | ||||
MPPT Voltage range (in the situation of rated power) |
120-425V |
120-425V |
180-500V |
180-500V | |
Power |
1000W |
1500W |
2000W |
3000W | |
Voltage output range |
230V (180 - 270V) (Can be adjusted) | ||||
Rated voltage |
AC 230V | ||||
AC Frequency |
Grid frequency 50(47-52) | ||||
Phase |
Single phase | ||||
Power factor |
1 | ||||
Max. Output current |
4.5A |
6.8A |
9A |
13.6A | |
THD |
At rated power and the sine wave <3.5 | ||||
Max. Efficiency |
96.7% |
96.8% |
96.8% |
96.8% | |
European weighted efficiency |
95.5% 96% 95.8% 96.2% | ||||
MPPT Efficiency |
99.90% | ||||
Degree of protection |
IP65/NEMA 4X | ||||
Cooling method |
Natural cooling | ||||
Noise emission |
<50dB | ||||
Topology |
Transformerless | ||||
Data interface |
External RS 232C /485/WiFimodule(optional) | ||||
Inverter |
Input over voltage, output short circuit, overload ,overheat protection | ||||
Grid |
Anti-islanding(IEEE 1547),over/under voltage of grid, over/under frequency of grid protection | ||||
Operaton temperature range |
Airiness -10℃~40℃(50℃) | ||||
Stored temperature |
-25℃~60℃ | ||||
Relative humidity |
0~100% | ||||
Environment |
Have no corrosion gas, flammable gas, oil mist,dust etc. | ||||
Standby power consumption |
0W |
4KW~7KW
Model |
TressSolar4KTS |
TressSolar5KTS |
TressSolar6KTS |
TressSolar7KTS | |||
Max. DC input power(W) |
4200 |
5400 |
6100 |
7000 | |||
Max. DC input voltage(V) |
550 |
550 |
550 |
550 | |||
Max. DC input current (A) |
8.8 |
9.7 |
11 |
13 | |||
Number of independent MPPT inputs/strings per MPPT input |
2 | ||||||
MPPT Voltage range (in the situation of rated power) |
180-500 | ||||||
Power |
4000W |
5000W |
6000W |
7000W | |||
Voltage output range |
230V (180 - 270V) (Can be adjusted) | ||||||
Rated voltage |
AC 230V | ||||||
AC Frequency |
Grid frequency 50(47-52) | ||||||
Phase |
Single phase | ||||||
Power factor |
1 | ||||||
Max. Output current |
17.5A |
23A |
27A |
32A | |||
THD |
At rated power and the sine wave <3.5 | ||||||
Max. Efficiency |
96.7% |
96.8% |
96.8% |
96.8% | |||
European weighted efficiency |
95.5% |
96% |
95.8% |
96.2% | |||
MPPT Efficiency |
99.90% | ||||||
Off/On Voltage |
70-100V | ||||||
Degree of protection |
IP65/NEMA 4X | ||||||
Cooling method |
Natural cooling | ||||||
Noise emission |
<50dB | ||||||
Topology |
Transformerless | ||||||
Data interface |
External RS 232C /485/WiFimodule(optional) | ||||||
Inverter |
Input over voltage, output short circuit, overload ,overheat protection | ||||||
Grid |
Anti-islanding(IEEE 1547),over/under voltage of grid, over/under frequency of grid protection | ||||||
Operaton temperature range |
Airiness -10℃~40℃(50℃) | ||||||
Stored temperature |
-25℃~60℃ | ||||||
Relative humidity |
0~100% | ||||||
Environment |
|||||||
Standby power consumption |
0W |
